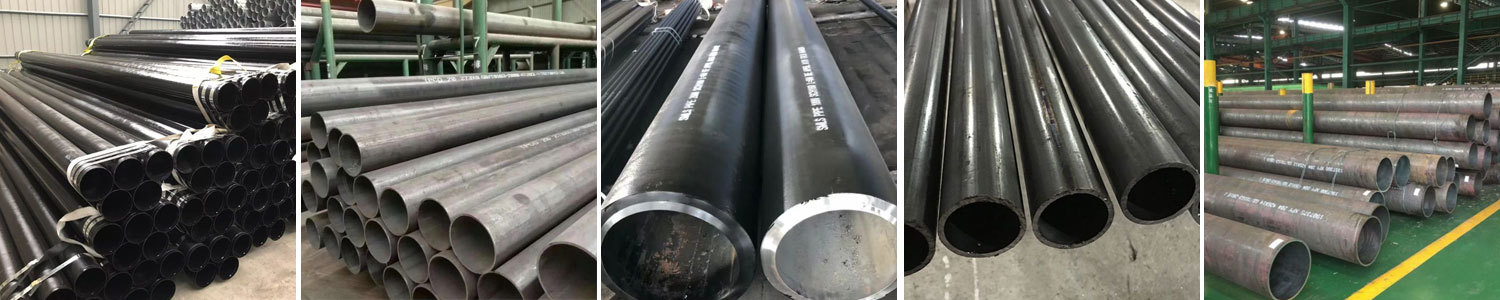

Structural Steel Pipe
Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. Gnee steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, Gnee steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.
Category:
Seamless Pipe
Keywords:
Structural Steel Pipe
Details description
Product introduction
Structural Steel Pipe
Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry
Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)
WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS
LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL
Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219
Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Specification of Structural Steel Pipe
| API 5L/ASTM A106 GR.B, Structural Steel Pipe | ||||
| 公称通径 DN | 外径OD(mm) | SCH40(6m/5.8m) | SCH40(6m/5.8m) | SCH40(6m/5.8m) |
| 壁厚WT | 壁厚WT | 壁厚WT | ||
| (mm) | (mm) | (mm) | ||
| 1/4'' | 13.7 | 2.24 | 3.02 | / |
| 3/8'' | 17.1 | 2.31 | 3.2 | / |
| 1/2'' | 21.3 | 2.77 | 3.73 | 4.78 |
| 3/4'' | 26.7 | 2.87 | 3.91 | 5.56 |
| 1'' | 33.4 | 3.38 | 4.55 | 6.35 |
| 1-1/4'' | 42.2 | 3.56 | 4.85 | 6.35 |
| 1-1/2'' | 48.3 | 3.68 | 5.08 | 7.14 |
| 2'' | 60.3 | 3.91 | 5.54 | 8.74 |
| 2-1/2'' | 73 | 5.16 | 7.01 | 9.53 |
| 3'' | 88.9 | 5.49 | 7.62 | 11.13 |
| 3-1/2'' | 101.6 | 5.74 | 8.08 | / |
| 4'' | 114.3 | 6.02 | 8.56 | 13.49 |
| 5'' | 141.3 | 6.55 | 9.53 | 15.88 |
| 6'' | 168.3 | 7.11 | 10.97 | 18.26 |
| 8'' | 219.1 | 8.18 | 12.7 | 23.01 |
| 10'' | 273 | 9.27 | 15.09 | 28.58 |
| 12'' | 323.8 | 10.31 | 17.48 | 33.32 |
| 14'' | 355.6 | 9.53 | 11.13 | 19.05 |
| 16'' | 406.4 | 9.53 | 12.7 | 21.44 |
| 18'' | 457 | 9.53 | 14.27 | 23.83 |
| 20'' | 508 | 9.53 | 15.09 | 26.19 |
| 24'' | 610 | 9.53 | 17.48 | 30.96 |
Technical data
Structural Steel Pipe Chemical Composition and Mechanical Properties
| Standard | Grade | Chemical Composition (%) | Mechanical Properties | ||||||
| ASTM A53 | C | Si | Mn | P | S | Tensile STrength(Mpa) | Yield STrength(Mpa) | ||
| A | ≤0.25 | - | ≤0.95 | ≤0.05 | ≤0.06 | ≥330 | ≥205 | ||
| B | ≤0.30 | - | ≤1.2 | ≤0.05 | ≤0.06 | ≥415 | ≥240 | ||
| ASTM A106 | A | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥415 | ≥240 | |
| B | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≥485 | ≥275 | ||
| ASTM A179 | A179 | 0.06-0.18 | - | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
| ASTM A192 | A192 | 0.06-0.18 | ≤0.25 | 0.27-0.63 | ≤0.035 | ≤0.035 | ≥325 | ≥180 | |
| API 5L PSL1 | A | 0.22 | - | 0.90 | 0.030 | 0.030 | ≥331 | ≥207 | |
| B | 0.28 | - | 1.20 | 0.030 | 0.030 | ≥414 | ≥241 | ||
| X42 | 0.28 | - | 1.30 | 0.030 | 0.030 | ≥414 | ≥290 | ||
| X46 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥434 | ≥317 | ||
| X52 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥455 | ≥359 | ||
| X56 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥490 | ≥386 | ||
| X60 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥517 | ≥448 | ||
| X65 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥531 | ≥448 | ||
| X70 | 0.28 | - | 1.40 | 0.030 | 0.030 | ≥565 | ≥483 | ||
| API 5L PSL2 | B | 0.24 | - | 1.20 | 0.025 | 0.015 | ≥414 | ≥241 | |
| X42 | 0.24 | - | 1.30 | 0.025 | 0.015 | ≥414 | ≥290 | ||
| X46 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥434 | ≥317 | ||
| X52 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥455 | ≥359 | ||
| X56 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥490 | ≥386 | ||
| X60 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥517 | ≥414 | ||
| X65 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥531 | ≥448 | ||
| X70 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥565 | ≥483 | ||
| X80 | 0.24 | - | 1.40 | 0.025 | 0.015 | ≥621 | ≥552 | ||
Structural Steel Pipe Chemical Composition and Mechanical Properties
| Standard | Grade | Chemical Composition | Mechanical Properties | |||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | ||
| GB/T8163 | 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.25 | ≤0.25 | 335-457 | ≥205 | ≥24 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 | ≤0.25 | 410-550 | ≥245 | ≥20 | |
| Q345 | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | ≤0.045 | ≤0.045 | - | - | - | 490-665 | ≥325 | ≥21 | |
Structural Steel Pipe Tolerance
| Pipe types | Pipe Szie(mm) | Tolerances | |
| Hot rolled | OD | All | ±1% (min ±0.50mm) |
| WT | All | +15%, -12.5% | |
| Cold drawn | OD | 6～10 | ±0.20mm |
| 10～30 | ±0.40mm | ||
| 30～50 | ±0.45mm | ||
| >50 | ±1% | ||
| WT | ≤1 | ±0.15mm | |
| >1～3 | +15% -10% | ||
| >3 | +12.5% -10% | ||
Structural Steel Pipe End
| Plain End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
| Plain End (Square Cut) | Wall Thickness over 0.5 inch, including SCH XXS |
| Beveled End | Wall Thickness less than 0.5 inch, including SCH STD & SCH XS |
| Couplings | Outside Diameter equal or less than 2'' |
| Thread Protection | Outside Diameter over 4 inch |
Packing and delivery
Transportation: Land, sea, air
We have our own transportation fleet with the most convenient transportation and timely delivery.The company's products are exported to more than 70 countries and regions in the world, including Europe, America, Germany, South Korea, Indonesia, Bangladesh, etc.

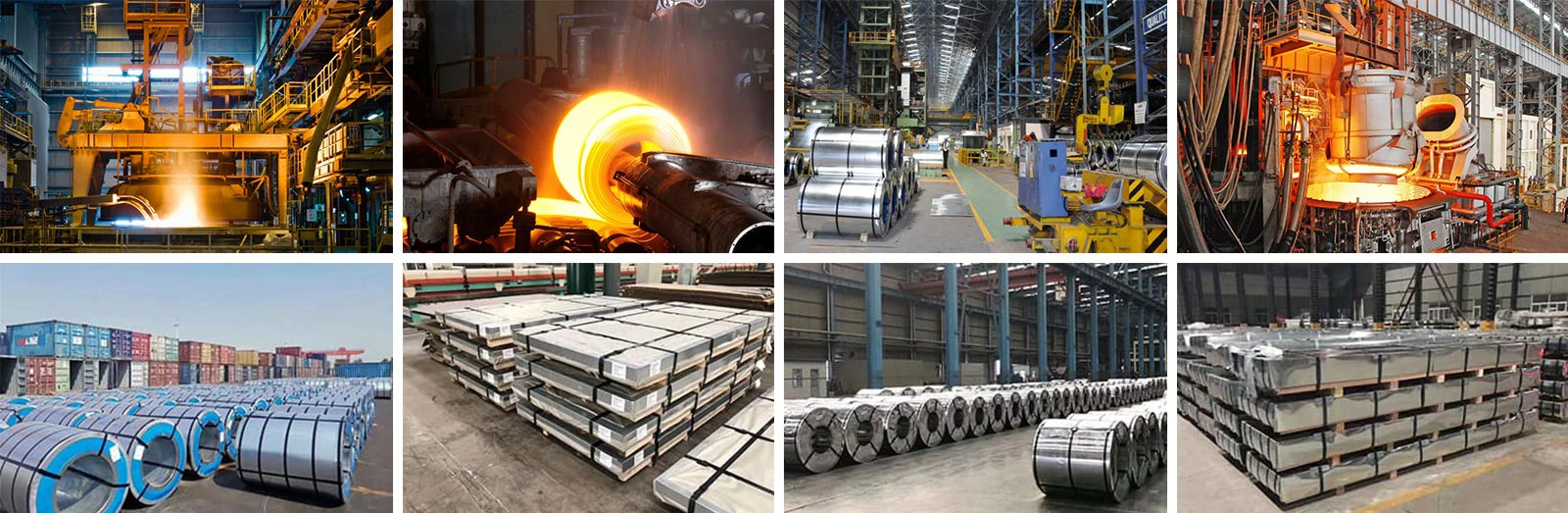

Factory
